Adding Elements (5:47 min)

0:00 / 0:00

Adding Elements to a Design Option

With the options configured, it’s time to move our elements to those options.

If you haven't already in the previous exercise, download the dataset.

To add elements to a design option, follow along.

Open Revit.
Open your architectural model.
Select the four glass walls as well as the wavy roof.

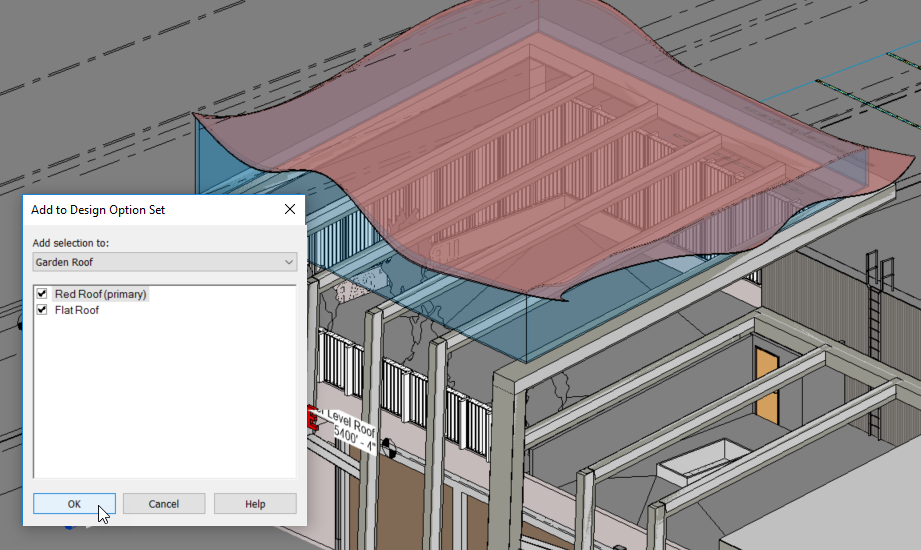

Click the Add to Set button as shown below

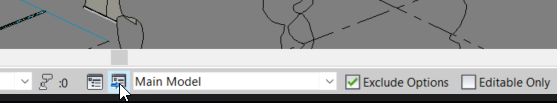

Select both options and add everything to both.
Click OK.

Perfect, you have now added all of your data to an option!
