Adding Design Options to a Model

Now it’s time to start adding options to our models! There comes a time when our client can’t decide what it is exactly what they want. It’s up to us to tell them.

Before you get started, download the files from the Files drop-down in the toolbar.

To attach walls to roofs, follow these steps.

  1. Open Revit.
  2. Open your architectural model.

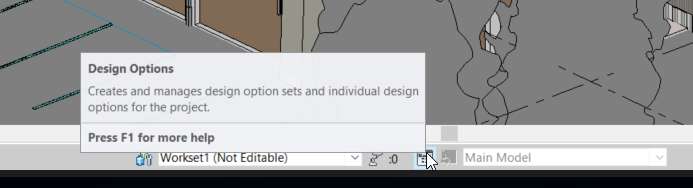

  3. At the very bottom of the Revit window, click the Design Options button.

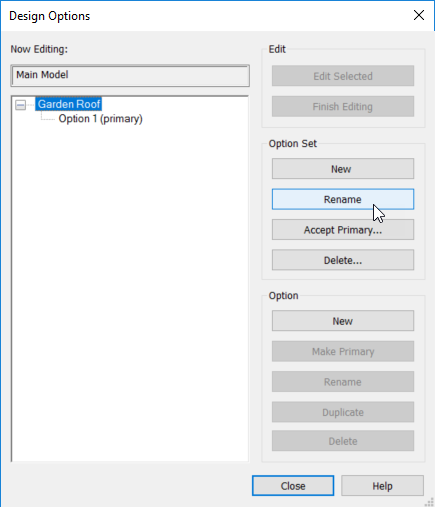

  4. For Option Set click New.

  5. Select Option Set 1

  6. Click Rename.

  7. Rename it to Garden Roof:

  8. For Option Click New

  9. Select Option 1

  10. Rename it to Red Roof

  11. Select Option 2

  12. Rename it to Flat Roof:

  13. Click Close.

  14. In the Options dialog at the bottom of the screen, select the fly out menu and select Flat Roof as shown below
