Understanding shared parameters

00:00

We are looking at Revit and BIM in general, from the perspective of a relational database,

00:06

we have looked at project information and how we can use that as a starting page.

00:11

And we looked at how the information within the database can help us with annotations and sheet references.

00:17

Now, the various parameters or fields within the Revit database are fixed,

00:23

things like door width, and floor levels and sheet numbers.

00:28

That's all preprogrammed into the Revit database.

00:32

But let's say we have some information that we wanna put within the project that is not part of the Revit database.

00:39

In that case, we need to create our own parameters. And that is what shared parameters are all about.

00:45

In this video, we will be creating a text file that describes these shared parameters that can be shared throughout the Revit project.

00:56

Here in Revit 2024, under Recent Files, is the small medical center project that we've been working on all along.

01:06

Select that to open it. And here's the project landing page that we looked at earlier.

01:11

Remember we have the project info, we have project notes.

01:16

You may recall that this is a title block. And if I click on the title block, I can edit the family.

01:23

We had done this earlier when we set up these various parameters within the title block.

01:31

But now what we want to do is to create a parameter that is not part of the standard Revit database.

01:39

Let's say, we require the civic number for this particular address.

01:46

Now, the crux here is that I'm going to add the raw civic number, or tag in the family.

01:54

And then I'm going to load it into the project.

01:57

And I have to make sure that this raw civic number field definition,

02:04

or parameter definition within this family will also be available in my project.

02:12

And that is where shared parameters come in.

02:16

So to demonstrate, let's create a new label.

02:21

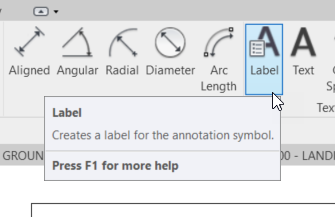

So on my Create tab, I click on "Label".

02:25

And I'm going to position the label in my Project Info. I want civic number.

02:35

But you notice that that does not exist in the standard Revit database.

02:41

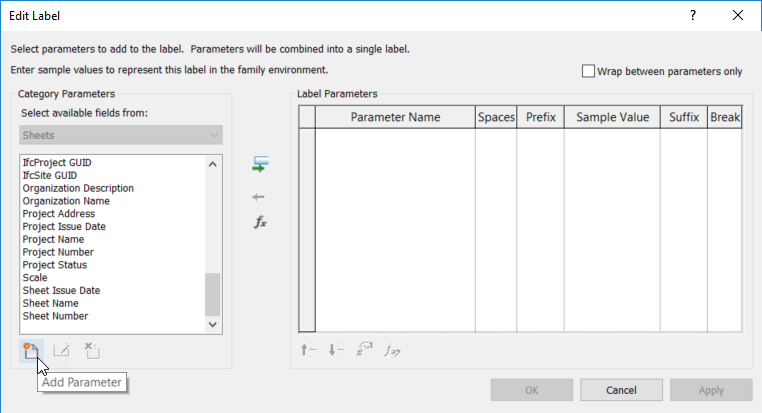

So I need to create a new parameter. So I click on this icon for new.

02:48

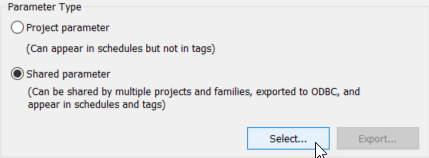

Now, the only thing that I can do here is select my shared parameter.

02:55

So I click on "Select".

02:58

We don't have a shared parameters file yet.

03:01

Do I want to choose one?

03:03

I actually want to create one, but in order to create one, I have to choose one. So I click yes.

03:10

And rather than browsing out to pick an existing parameter file, I click on create,

03:18

I go to my project folder, and I'm gonna put it in my configuration file,

03:24

and I'm going to call it 23-4512 which is our project number,

03:31

dash shared parameters.

03:37

I'm hoping that since it's in the config folder, people won't browse around in there.

03:43

And if they do, they will see that this is a shared parameters file and hopefully they won't modify it.

03:50

This is actually the Achilles heel of these shared parameters that it depends on a shared parameter, text file.

03:58

So I click save. Now, the only available thing that I can do now is create a new group.

04:03

So I click on groups, new. The group will be project information, and now I can create a new parameter.

04:12

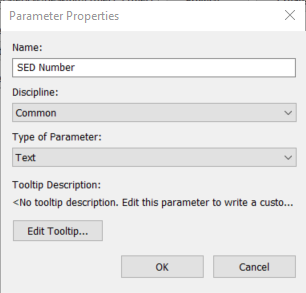

Let's create one for civic number. The discipline will be common, and the data type will be numeric.

04:24

Click OK. Let's create one more parameter. So I click on new again.

04:32

Let's call it the zone. The data type will be text.

04:39

Click "OK" once. "OK" again.

04:43

OK once more to close the shared parameters, and "OK" once more to close the parameter properties.

04:53

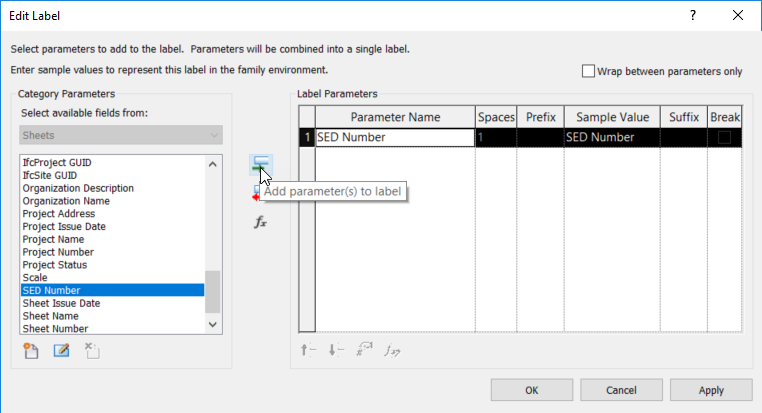

And now you see we have our civic number, so I can add that to this particular tg, and click "OK".

05:04

Let's add one more.

05:08

Even though the zone was created in the shared parameter, it has not yet come into the family.

05:14

So I once again, click on new, I'm going to select my parameter file.

05:20

It's already loaded. So now I can select zone, and bring that into my family. Click OK a couple of times.

05:28

And I'm going to add this to my parameters.

05:32

Now, I could add some more text, but for now this will do.

05:44

I select both new tags, and change my type to take one.

05:52

Let's just stretch this out a bit. Okay. Let's save our project page family.

06:02

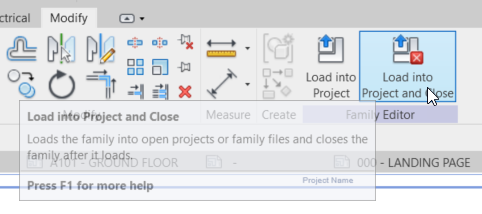

I do want to override it, and let's load it into our project

06:09

and we want to override the existing version.

06:13

So when I click on the title block, we merely see two question mark where the zone,

06:20

and the civic number is because as I was mentioning earlier,

06:26

this project knows nothing about these parameters that we set up in the family.

06:33

Therefore, we need to load these shared parameters into this project.

06:37

So it will understand what the civic number and zone parameters are.

06:43

Remember before I could double click on these, and I can go in and edit the values for these parameters.

06:51

But I really can't double click on this question mark, it doesn't know what it is.

06:56

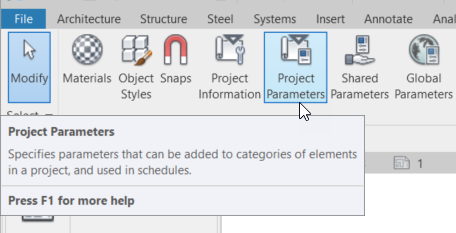

So I need to load these shared parameters into this file, and I do that by going to the manage tab, click on project parameters.

07:06

I have some parameters here already, and I want to create a new parameter.

07:14

It is from a shared parameter. So I click on shared parameter, and select, and look at this.

07:22

I have my civic number, and my zone. Click on "civic number", "OK".

07:29

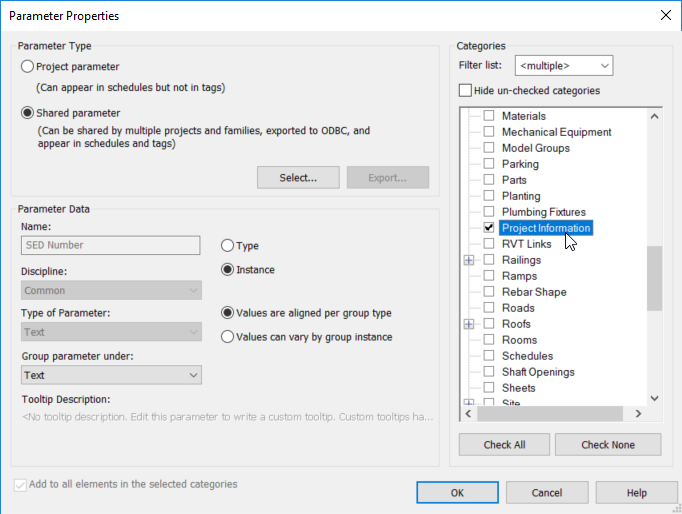

And now I need to tell it which category my civic number belongs to.

07:35

I browse down to project information, and click "OK".

07:40

We do that one more time for the zone, new parameter, shared parameter, select zone.

07:50

Okay. And my zone will also be part of project information.

07:57

Click "OK". And "OK" once again.

08:01

And now I can edit the project page.

08:05

And as before I can double click on this question mark, and put in the civic number of 2345.

08:14

The zone, I can double click on the zone, and type in South.

08:21

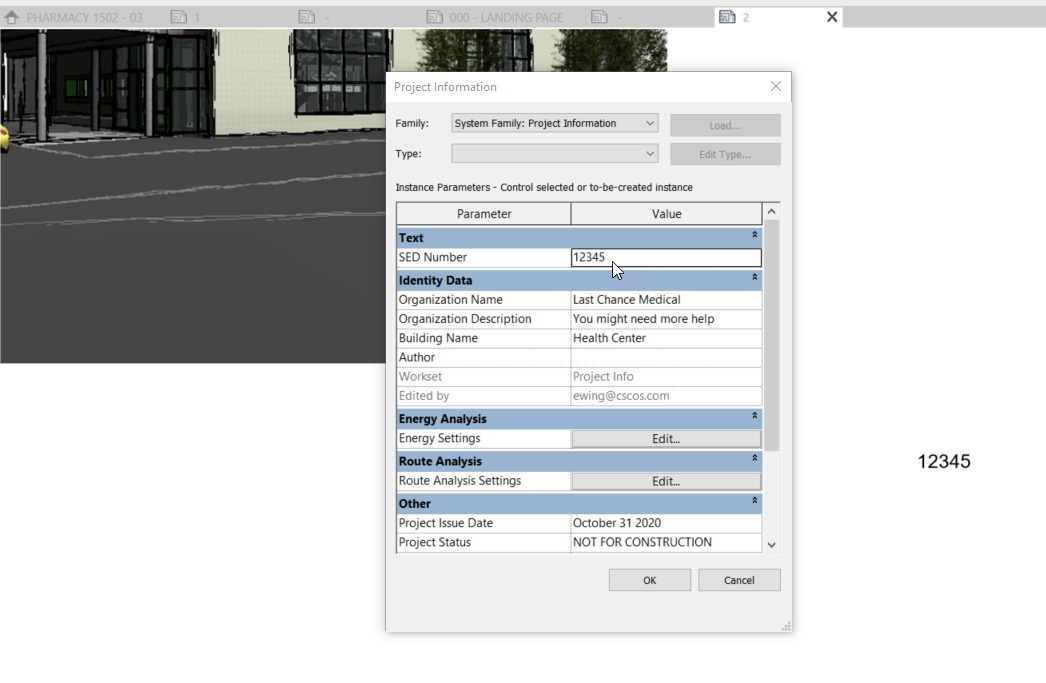

If I go to my manage tab under project information,

08:26

and now you will see that the zone is listed under text, and further down under other,

08:34

we have our civic number, and click "OK".

08:39

Now I don't really like using shared parameters and will only use them as a last case scenario,

08:47

because it relies on that shared parameter text file that can get lost.

08:54

Or if I send this Revit project to another team,

08:58

I need to make sure that I include the shared parameter file, and there are just too many possibilities, for this thing to break.

09:07

However, if nothing else will do, this is the way to create new parameters for your project and share them amongst your team.
